Wall Mount Basecamp and Dimensions
This guide provides the technical specifications and installation requirements for mounting a Basecamp device on a wall or integrating it into furniture.

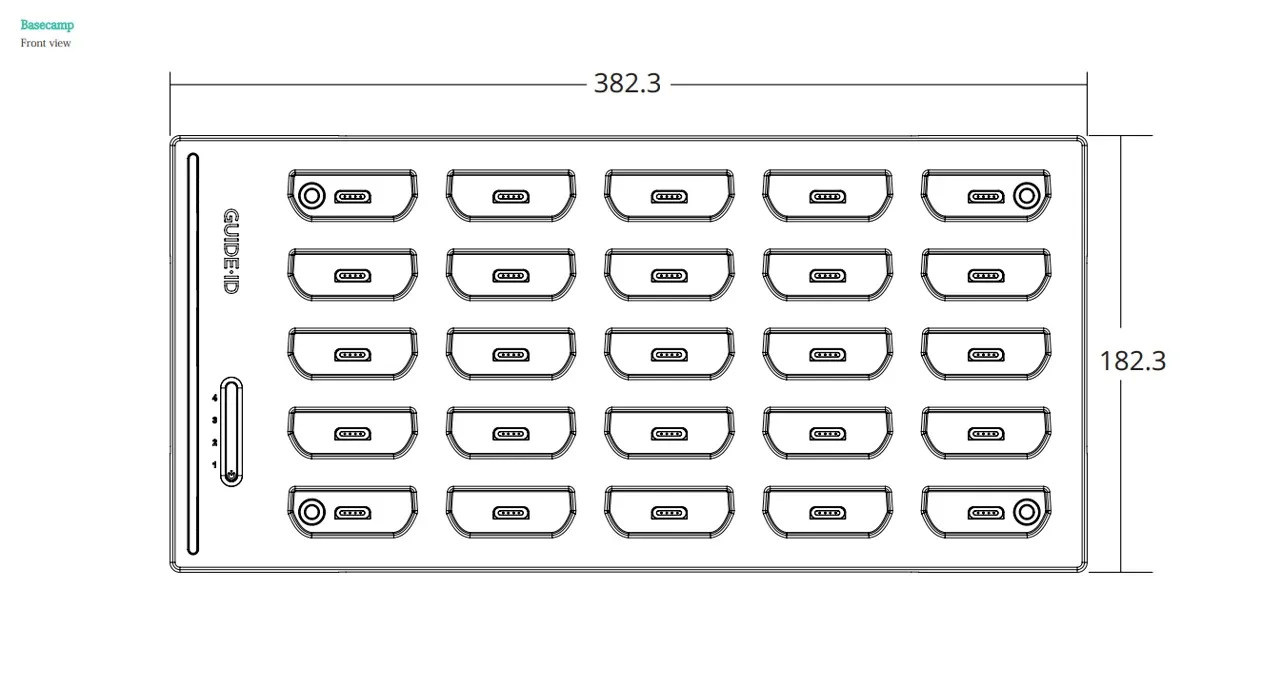

Dimensions
Section titled “Dimensions”

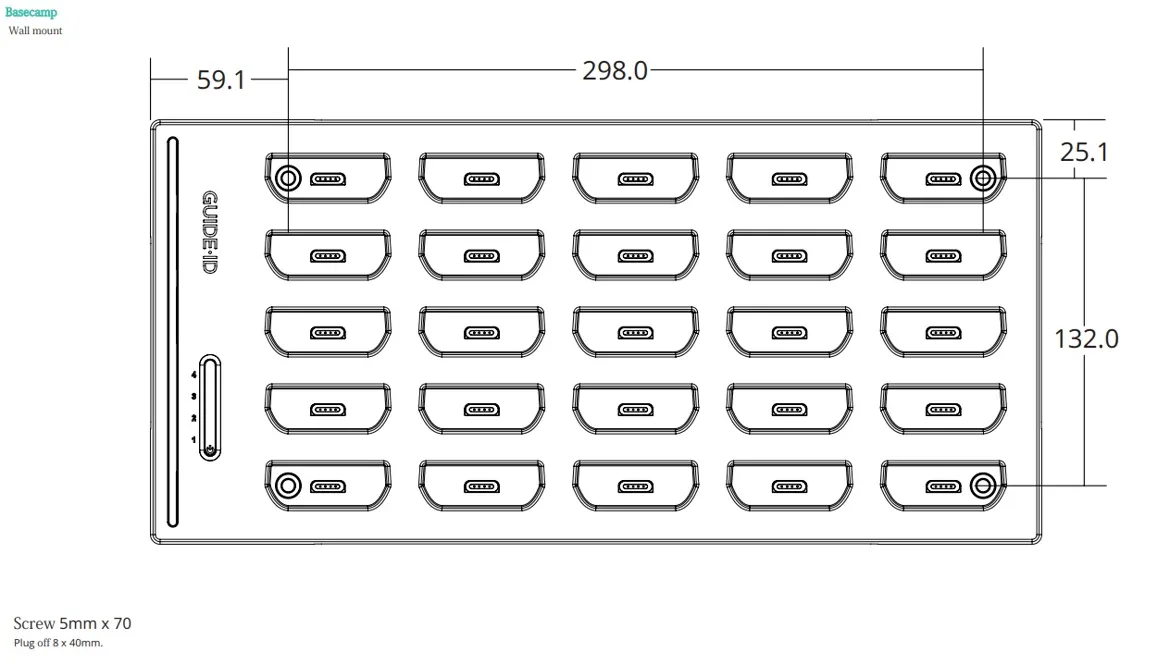

Wall mount
Section titled “Wall mount”
Mounting specifications
Section titled “Mounting specifications”Required hardware
Section titled “Required hardware”| Item | Specification |
|---|---|
| Screws | 5 mm x 70 mm |
| Wall plugs | 8 x 40 mm |
| Drill bit | 8 mm |
The Basecamp has four screw holes positioned for vertical wall mounting.
Ventilation requirements
Section titled “Ventilation requirements”When installing a Basecamp — especially when integrating into furniture — observe these conditions:
- Airflow — Ensure sufficient airflow at the rear of the device
- Ventilation access — Keep the ventilator at the bottom of the unit unobstructed
- Clearance — Maintain a minimum of 3 cm clearance behind the ventilator
- Backing material — Do not use a solid backing plate; always include ventilation holes to prevent overheating
