Beacon Lite Dimensions and Wall Mount
The Beacon Lite is a compact beacon device designed for easy placement throughout exhibition spaces. Below are the dimensional specifications and wall mounting details.
Dimensions
Section titled “Dimensions”| Property | Value |
|---|---|
| Diameter | ∅ 46.4 mm |
| Height | 9.8 mm |
| Battery life | Up to 2 years on a single battery |

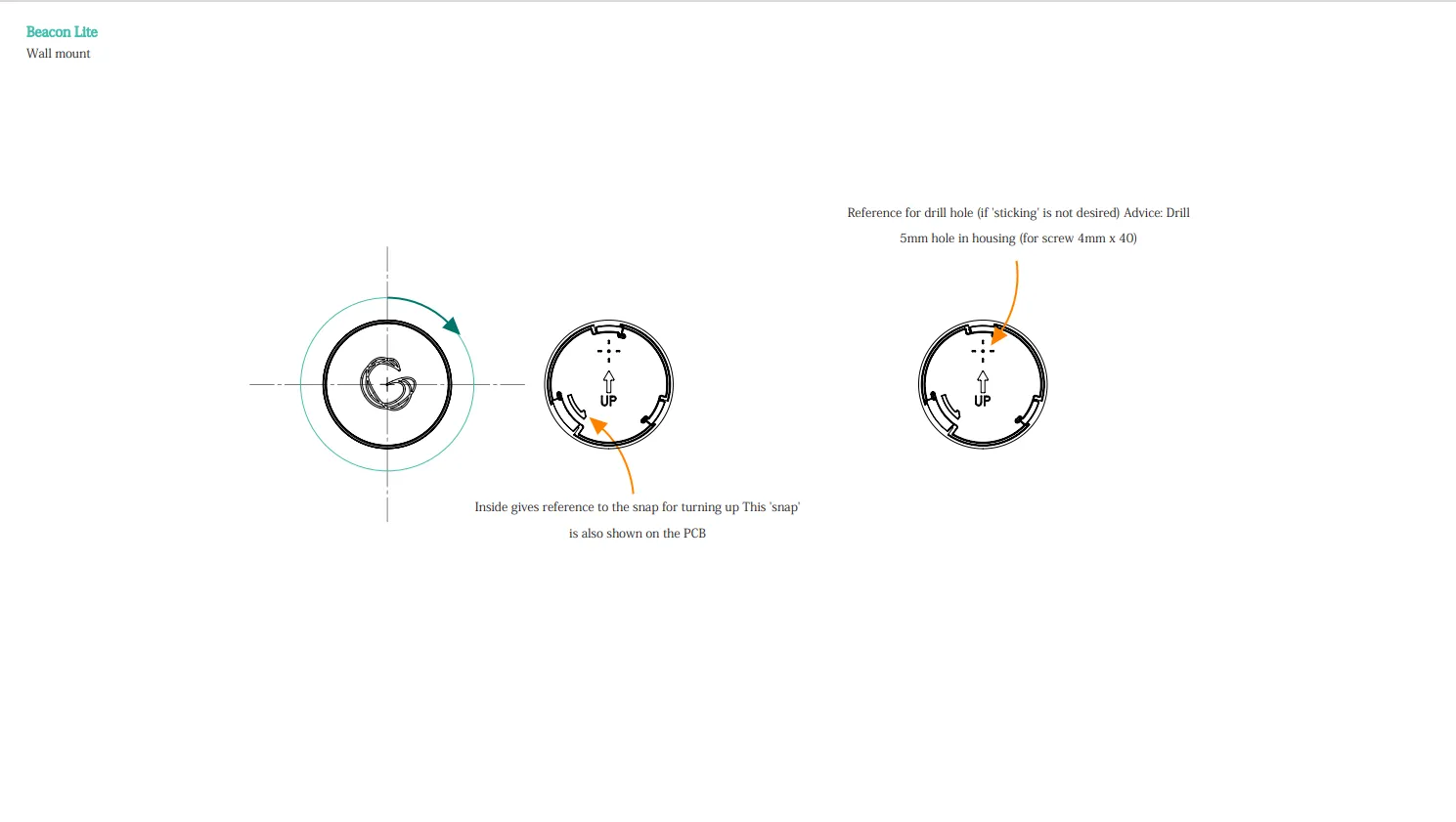

Wall mounting
Section titled “Wall mounting”
The Beacon Lite can be mounted using double-sided tape or integrated into exhibition furniture.
Mounting with double-sided tape
Section titled “Mounting with double-sided tape”| Property | Value |
|---|---|
| Recommended height | 150 - 170 cm from floor (eye level) |
| Minimum spacing between beacons | 20 cm |
| Surface requirement | Clean, dry, non-porous surface |
Furniture integration
Section titled “Furniture integration”For a more discreet installation, the Beacon Lite can be embedded into exhibition furniture using recessed installation, under-shelf mounting, or custom housing. Ensure the signal face remains unobstructed and is not blocked by metal components.
Related resources
Section titled “Related resources”- Beacon Lite Datasheet — full technical specifications and PDF download
- Beacon Lite Installation — complete installation and configuration guide
